Fuji, a company famous for its film, digital cameras and other photographic products, entered the vehicle below in the Darwin to Adelaide race.  The Rose is reputed to have a 98.2% efficient electric motor and to have cost several million pounds to develop.  This car won the World Solar Challenge (WSC) in 1996.  This same development figure would have built and equipped the Solar Navigator catamaran.







Fuji Xerox - Desert Rose





Why not visit the webpage opposite for more information: Fuji Desert Rose Solar car

Entrants in the cross Australia race, from Darwin to Adelaide, use solar panels to power a lightweight car over 2,000 miles at speeds of up to 50 miles per hour. Clearly, solar power can deliver enough energy to drive a vehicle considerable distance given the right conditions.








Fuji Xerox is the principal sponsor of the Fuji Xerox Desert Rose solar car. The team has recently received sponsorship deals from APG Electrical, Paspaley Pearl Group and Quality Plumbing. The Desert Rose team wishes to thank these businesses for their support.  If you are a local business and wish to support the Fuji Xerox Desert Rose solar car, please see the contact given below.



(May/June 2001) Sponsorship



Motorola, Holden, Faculty Of Technology and Industrial Education, Colin Ross NT KTM Racing and the NTU's VC's office have recently sponsored the Desert Rose and the team wishes to thank these businesses for their support.



(30/05/2001) Website update



The specifications page is now complete. Please email the webmaster on matters of corrections and the like.



(13/10/99) Whirlpool Sunrace 2000



For the latest information on how the Fuji Xerox Desert Rose is going in the Whirlpool Sunrace 2000, check out the link at the Northern Territory University website. For more mature information visit the 2000 History page.







Fuji Xerox - Team





History Links - 2001 - 2000 - 1999 - 1998 - 1996 - 1995 - 1993 - 1990 - 1987



The Fuji Xerox Desert Rose has been racing for over a decade now. With this sort of experience, you would rightly expect that she would be a good performer. And she is!



Since her conception, prior to the very first 1987 World Solar Challenge (WSC), the Desert Rose has received numerous awards particularly in the area of technical excellence. Most recently, the Fuji Xerox Desert Rose was announced by the International Solar Racing Federation as the fastest solar car averaged over 100 kms. Averaging 107.78 kmh in the 'Hay 100', a feature of the Whirlpool Sunrace 2000, the Desert Rose achieved one of the highest accolades in solar car racing.



In 1999, the Desert Rose managed 4th place in the WSC for that year, only 1 hour behind the leader in the 3010 km race. This performance was her best to date in any WSC with 7th place in 1996, 7th place in 1993, 12th place in 1990 and 5th place in 1987.

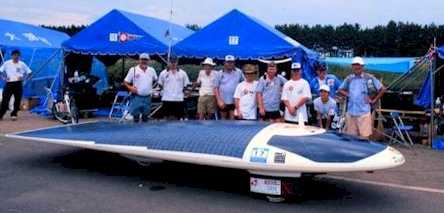

The travels of the Desert Rose are not just limited to Australia however, she has also been twice to Akita in Japan. After a surprise phone call in 1995, the Desert Rose participated in her first overseas race, the 1995 World Solar Rallye. This was the first of two attempts to win, the second being held in 1998. Both races had good results, but better still provided important lessons on reliability and strategy.

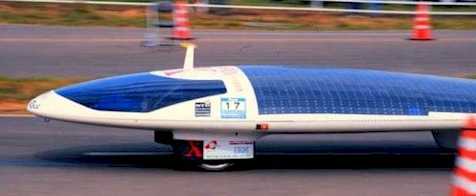

 The Desert Rose - glistening







Body

Monohull with integral solar panel. Construction: fibreglass, Kevlar, carbon fibre. Coefficient of aerodynamic drag Cd<0.13. Overall dimensions: 5,800 x 2,000 x 700mm at a point of minimum depth.

Suspension

Front: McPherson strut utilising Fournales oleo-pneumatic suspension units. Rear: Swinging arm with Fournales oleo-pneumatic suspension units.

Running Gear

Front: Two 20inch wheels fitted with disk brakes. Rear: One 26inch drive wheel. Michellin tyres.

Final Drive

Wheel-mounted 10kW axial-flux, Nd-Fe-B permanent magnet, brushless DC motor; 96% efficiency at 1kW, 72kph; mass 16kg. Northern Territory University design and construction.

Steering

Chain and sprocket operated cross shaft.

Total Vehicle Mass

195kg

Electrical

48-volt motor and control system, designed and manufactured by the Northern Territory University.

Solar Array

Continuously curved array for optimum aerodynamic / crosswind performance; 4,000 x 2,000mm projected area and utilising special heat transfer techniques to minimise panel temperature. Cells manufactured by UNSW Centre for Photovoltaic Devices and Systems - efficiency 17-19%; total output 1,350watts at 25°C, at 1kW/m2 insulation. Array divided into 27 sub-areas; variation of angle of normal from mean within each sub-area ±3°. String length 30 to 60 cells. 13 sub-areas have two strings in parallel. 26 power point trackers, Northern Territory University designed, 99% efficient, are mounted, distributed on the array, feeding an aluminium bus bar system.

Batteries

28 cells; 1.5V, 115Ah; weight 32kg. Manufactured by Eagle-Picher.







For general information and enquiries about the Fuji Xerox Desert Rose, please contact:





Associate Professor Dean Patterson
Director
NT Centre for Energy Research
Email: d_patterson@banks.ntu.edu.au
Ph:  +61 8 8946 6389
Fax: +61 8 8946 6993








The 1996 World Solar Challenge, 3010 km

Race Results
Placing Team Car Origin Time Speed
1st Honda R & D Dream Japan 33:32 h:m 89.76 km/h
2nd United High Schools of Biel sCHooler (*) Switzerland 35:00 h:m 86.00 km/h
3rd Aisin Seiki Co Ltd Aisol III Japan 37:18 h:m 80.70 km/h
4th Mitsubishi Materials Corporation Sun Challenger Japan 45:07 h:m 66.72 km/h
5th University of Queensland Sunshark Australia 46:24 h:m 64.87 km/h
6th Waseda University Sky Blue Waseda II Japan 46:38 h:m 64.55 km/h
7th Northern Territory University Fuji Xerox Desert Rose Australia 48:02 h:m 62.66 km/h
9th University of New South Wales Sunswift (*) Australia 56:32 h:m 53.24 km/h
16th Lake Tuggeranong College Spirit of Canberra (*) Australia 67:15 h:m 44.76 km/h
DNF Aurora Aurora 101 Australia Did not finish, owing to accident on day 1 while running 4th












Solar powered car racing events continue to gain in popularity the world over judging from the number of world class teams listed below.  They say racing improves the breed and this is no exception.  Most of the development of solar racers is undertaken by university teams.  It seems this is a young engineers sport and that the cars of the future are for the most part being developed by educational institutions with sponsorship from local business and government environmental initiatives.
