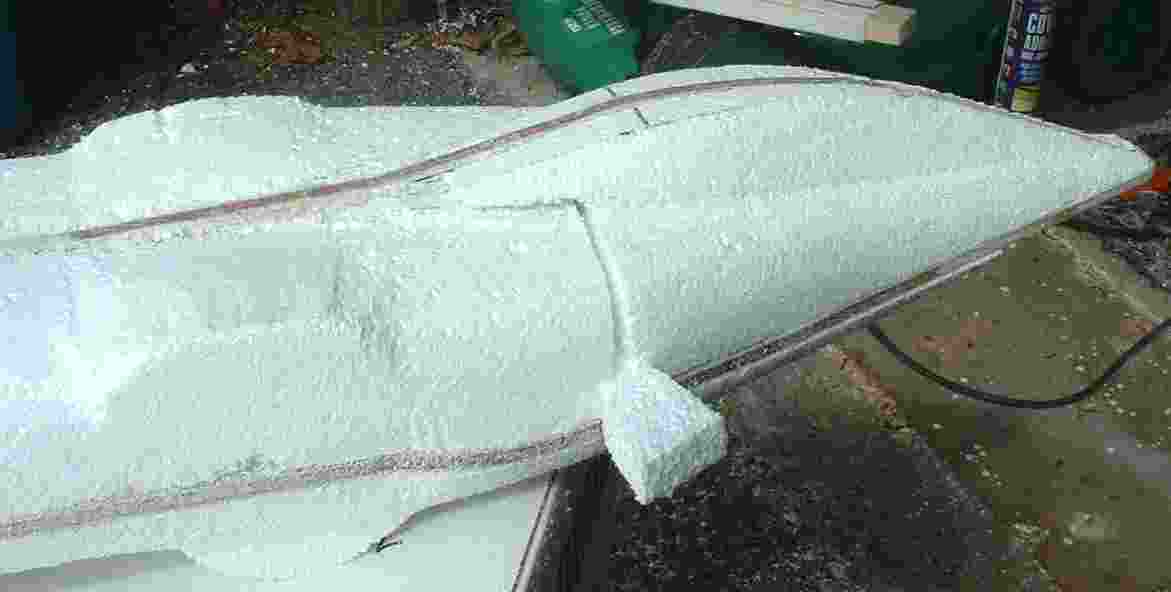

Land speed record car model carving



Filling formers with foam



Foam strips are bonded into position using instant grab adhesive filler.  The foam is then rough cut with a wood saw and shaped approximately with 40 grit production paper.

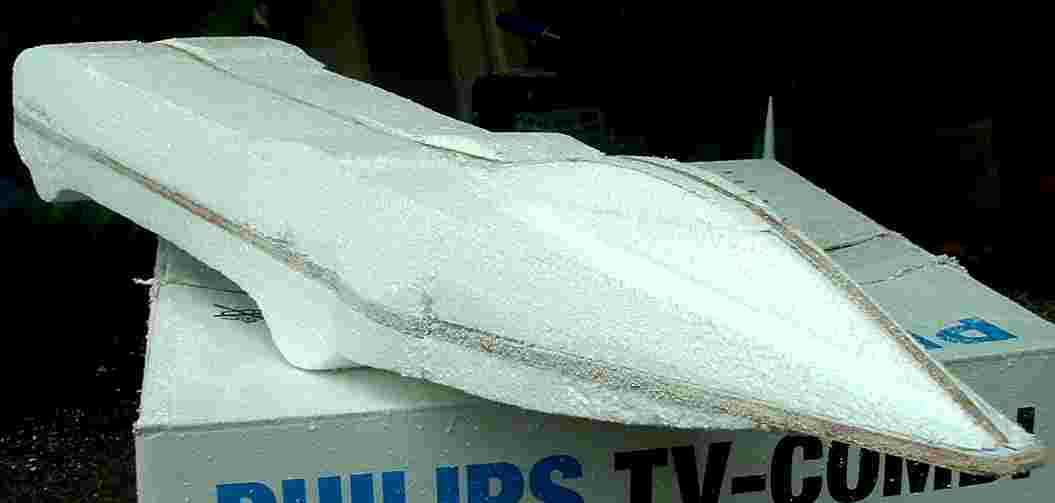

Blueplanet Ecostar polystyrene model carving



Square cut foam filled formers



At this stage the outline shape of Blueplanet is revealed.  The tail fin and wheel arches need to be added after the body shape is defined.



MODEL MAKING STAGES



Steps 1.  Mark out your plywood and cut formers

Step 2.  Assemble plywood formers

Step 3. Fill formers with foam and shape

Step 4. Coat foam plug with plaster

Step 5. Sand, add detail mouldings and prime

Step 6. Paint finished model













LOADING-SERVO  |  CARTRIDGE  |  MOTORS  |   JOYSTICK-CAR

  WIND-TUNNEL   |   WIND TUNNEL DETAILS





The latest electric world land speed record car design, 350mph plus

This is the kind of result you can expect from your wind tunnel - a super slippery 350+ mph electric streamliner. This particular car is charged by solar power, making it probably the world's fastest solar powered electric land speed record car. She also has battery cartridge exchange built in, for instant refueling.
